Description

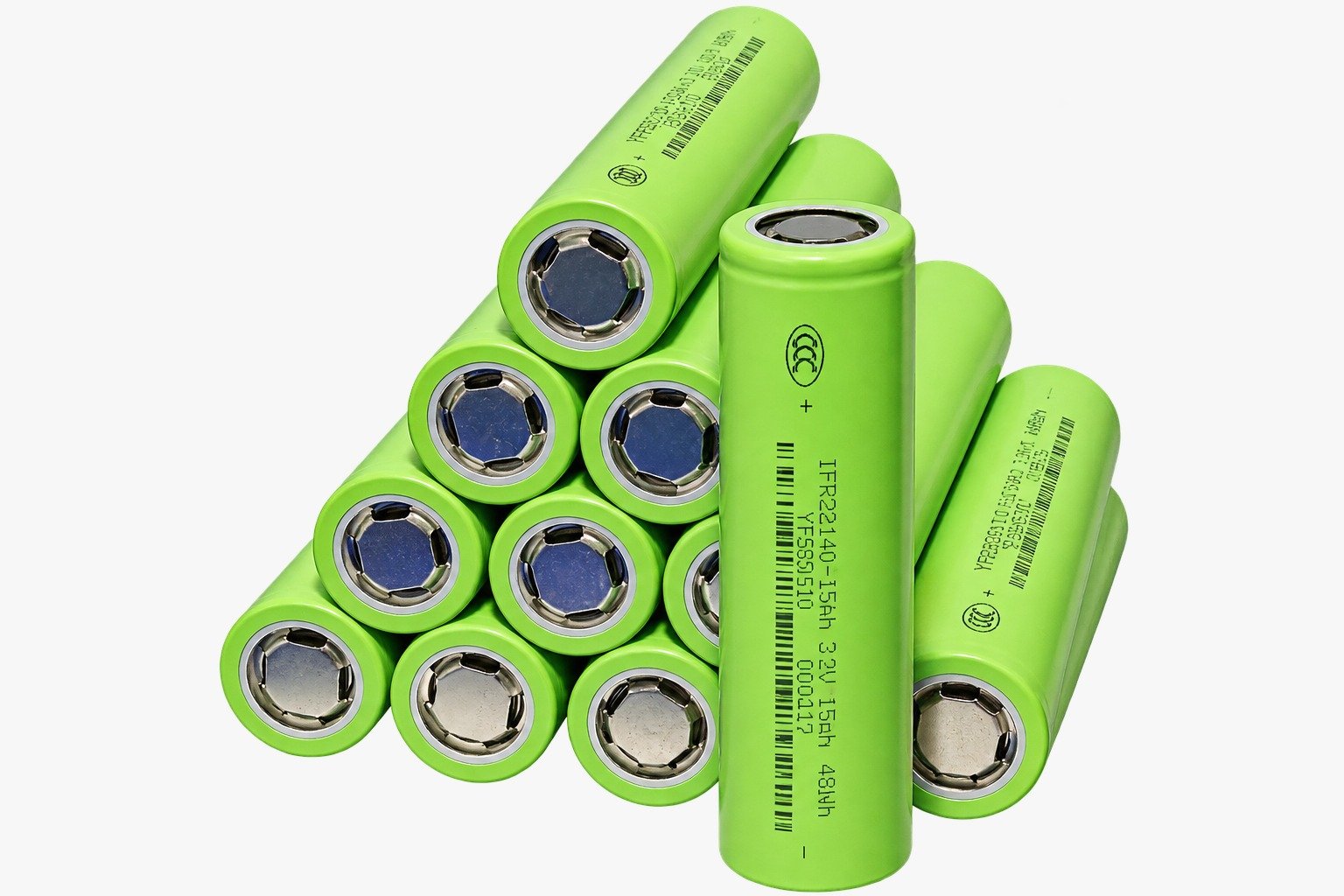

The IFR32140 LiFePO₄ (LFP) Battery Cell is a high-performance rechargeable lithium iron phosphate cell designed for reliable energy storage and high-power battery applications. With a 3.2V nominal voltage and 15Ah rated capacity, this cell provides approximately 48Wh of energy, making it suitable for building custom battery packs and energy storage systems.
The IFR32140 offers excellent performance with 1C standard charging and discharging, supporting up to 15A standard charge/discharge current. It can also handle 2C continuous charge and discharge, providing up to 30A continuous current for applications that require higher power output.
For short-duration peak loads, the cell supports up to 3C maximum charge and discharge current, reaching 45A for approximately 15–30 seconds. This makes it suitable for applications where temporary high-current demand is required.
The cell has a compact 32 × 140 mm size and uses LiFePO₄ chemistry, making it well suited for applications where safety, durability, stable performance, and long-term rechargeable operation are important.
Key Specifications
- Battery Chemistry: LiFePO₄ (LFP)
- Model: IFR32140
- Nominal Voltage: 3.2V
- Rated Capacity: 15Ah
- Energy: 48Wh
- Cell Size: 32 × 140 mm
- Standard Charge: 1C / 15A
- Standard Discharge: 1C / 15A
- Continuous Charge: 2C / 30A
- Continuous Discharge: 2C / 30A
- Maximum Charge: 3C / 45A for 15–30 seconds
- Maximum Discharge: 3C / 45A for 15–30 seconds
- Rechargeable: Yes
- Manufacturing Date: 10 April 2026
Applications
The IFR32140 15Ah LiFePO₄ cell is suitable for a wide range of applications, including:
- Solar Energy Storage Systems
- UPS Systems
- Inverter Battery Packs
- ESS / Energy Storage Systems
- Electric Vehicles (EVs)
- E-bikes
- Backup Power Systems
- DIY Battery Packs
- Custom LiFePO₄ Battery Assemblies
Whether you are building a small custom battery pack or a larger energy storage system, the IFR32140 3.2V 15Ah LiFePO₄ cell provides a practical combination of capacity, current capability, compact size, and rechargeable performance.
